Introduction of Metal Cable Gland
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipment, train, motors, projects etc.
|
Material: |
Body: nickel-plated brass Seal: Polyamide, Sealing: modified rubber |
|
Temperature Range: |
Min -40℃,Max 100℃,Short-term 120℃ |
|
Protection degree: |
within the clamping range, its protection degree can reach IP68 |
|
Properties: |
succeed in the experiment of IEC-60077-1999 resistance to vibration and impact, passed RoHS |
|
Certifications: |
CE, RoHS . |

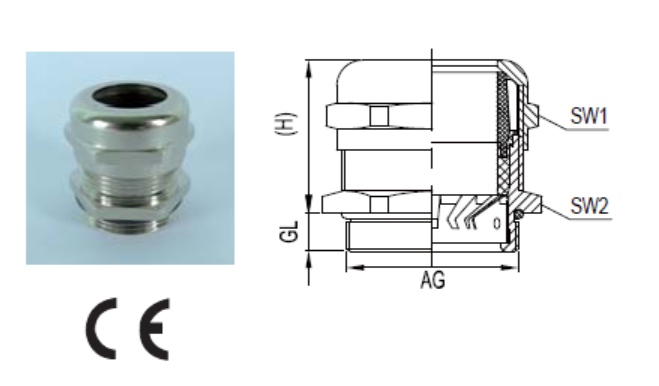

Specification:
(Please contact us for more information if you need other sizes not included in the following list.)
| article no. | thread | clamping range | thread length | (H) | SW1/SW2 | assembly | packet |
| dimension |
mm |
mm |
mm |
mm |
type | units | |
| HSM-EMV.SC-M12 | M12×1.5 |
3~6.5 |
6 |
20.5 | 14/14 | A / B |
75 |
| HSM-EMV.SC1-M12 | M12×1.5 |
4~8 |
6 |
22 | 20/19 |
A |
75 |
| HSM-EMV.SC -M16 | M16×1.5 |
4~8 |
7 |
21 | 17/18 | A / B |
75 |
| HSM-EMV.SC1-M16 | M16×1.5 |
5~10 |
7 |
24 | 22/21 |
A |
32 |
| HSM-EMV.SC -M20 | M20×1.5 |
7~12 |
7 |
25 | 22/22 | A / B |
32 |
| HSM-EMV.SC1-M20 | M20×1.5 |
9~14 |
7 |
28 | 26/26 |
A |
18 |
| HSM-EMV.SC -M25 | M25×1.5 |
11~16 |
7 |
26.25 | 28/28 | A / B |
18 |
| HSM-EMV.SC1-M25 | M25×1.5 |
13~18 |
7 |
29 | 30/30 |
A |
18 |
| HSM-EMV.SC -M32 | M32×1.5 |
15~21 |
8 |
29 | 36/36 | A / B |
18 |
| HSM-EMV.SC1-M32 | M32×1.5 |
17~24 |
8 |
33.5 | 38/38 |
A |
8 |
| HSM-EMV.SC -M40 | M40×1.5 |
22~30 |
9 |
35.5 | 45/45 | A / B |
8 |
| HSM-EMV.SC1-M40 | M40×1.5 |
22~32 |
9 |
34 | 50/50 |
A |
8 |
| HSM-EMV.SC -M50 | M50×1.5 |
30~38 |
9 |
40.5 | 58/55 | A / B |
2 |
| HSM-EMV.SC1-M50 | M50×1.5 |
30~40 |
9 |
37 | 58/58 |
A |
2 |
| HSM-EMV.SC -M63 | M63×1.5 |
37~44 |
10 |
43.5 | 65/70 | A / B |
2 |
| HSM-EMV.SC1-M63 | M63×1.5 |
38~53 |
10 |
48 | 75/75 |
A |
2 |
Stainless steel also available for series connectors
