Introduction of Metal Cable Gland
Cable glands are mainly used to clamp, fix, protect the cables from water and dust. They are widely applied to such fields as control boards, apparatuses, lights, mechanical equipment, train, motors, projects etc.
We can provide you with metal cable glands made of nickel-plated brass, stainless steel and aluminum alloy.
|
Material: |
Body: nickel-plated brass; sealing: modified rubber |
|
Temperature Range: |
Min -50℃, Max 150℃ |
|
Protection degree: |
within the clamping range, its protection degree can reach IP68 |
|
Properties: |
V0(UL94),free of halogen, phosphor and cadmium, passed RoHS; UV-resistance, passed anti-aging test |
|
Certifications: |
CE, RoHS |

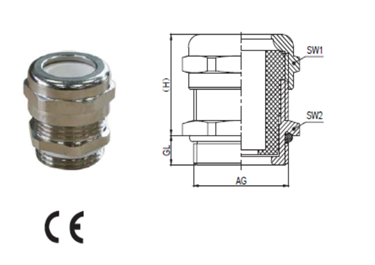

Specification:
(Please contact us for more information if you need other sizes not included in the following list.)
|
|
|
|
|
|
|
|
|
Article no. |
Thread |
Clamping range |
GL |
H |
Wrench size |
Packet |
|
|
Dimension |
mm |
mm |
mm |
mm |
units |
|
HSM.DS-M16/7 |
M16×1.5 |
4~7 |
7 |
20.5 |
18 |
75 |
|
HSM.DS-M20/10 |
M20×1.5 |
7~10 |
7 |
23 |
22 |
32 |
|
HSM.DS-M20/13 |
M20×1.5 |
9~13 |
7 |
23.5 |
28/26 |
18 |
|
HSM.DS-M25/13 |
M25×1.5 |
9~13 |
7 |
24 |
28 |
18 |
|
HSM.DS-M25/15 |
M25×1.5 |
12~15 |
8 |
25 |
30/28 |
18 |
|
HSM.DS-M32/15 |
M32×1.5 |
12~15 |
8 |
25 |
30/36 |
18 |
|
HSM.DS-M32/18 |
M32×1.5 |
14~18 |
8 |
26 |
36 |
18 |
|
HSM.DS-M32/22 |
M32×1.5 |
18~22 |
8 |
27 |
40/38 |
8 |
|
HSM.DS-M40/22 |
M40×1.5 |
18~25 |
9 |
27 |
50/45 |
8 |
|
*HSM.DS-M40/25 |
M40×1.5 |
21~25 |
9 |
27 |
45 |
8 |
|
*HSM.DS-M40/30 |
M40×1.5 |
25~30 |
9 |
29 |
50/46 |
8 |
|
*HSM.DS-M50/30 |
M50×1.5 |
25~30 |
9 |
30 |
50/55 |
8 |
|
*HSM.DS-M50/34 |
M50×1.5 |
29~34 |
9 |
30 |
55 |
8 |
|
*HSM.DS-M50/37 |
M50×1.5 |
32~37 |
9 |
31 |
55 |
8 |
|
*HSM.DS-M56/37 |
M56×2.0 |
32~37 |
9 |
31 |
55/60 |
2 |
|
*HSM.DS-M56/40 |
M56×2.0 |
35~40 |
9 |
33.5 |
60 |
2 |
|
*HSM.DS-M56/43 |
M56×2.0 |
38~43 |
10 |
33.5 |
60 |
2 |
|
*HSM.DS-M63/43 |
M63×1.5 |
38~43 |
10 |
33.5 |
60 |
2 |
|
*HSM.DS-M63/46 |
M63×1.5 |
41~46 |
10 |
33.5 |
70 |
2 |
|
*HSM.DS-M63/51 |
M63×1.5 |
45~51 |
10 |
36 |
75 |
2 |
